Charging Pile

Introduction

Products

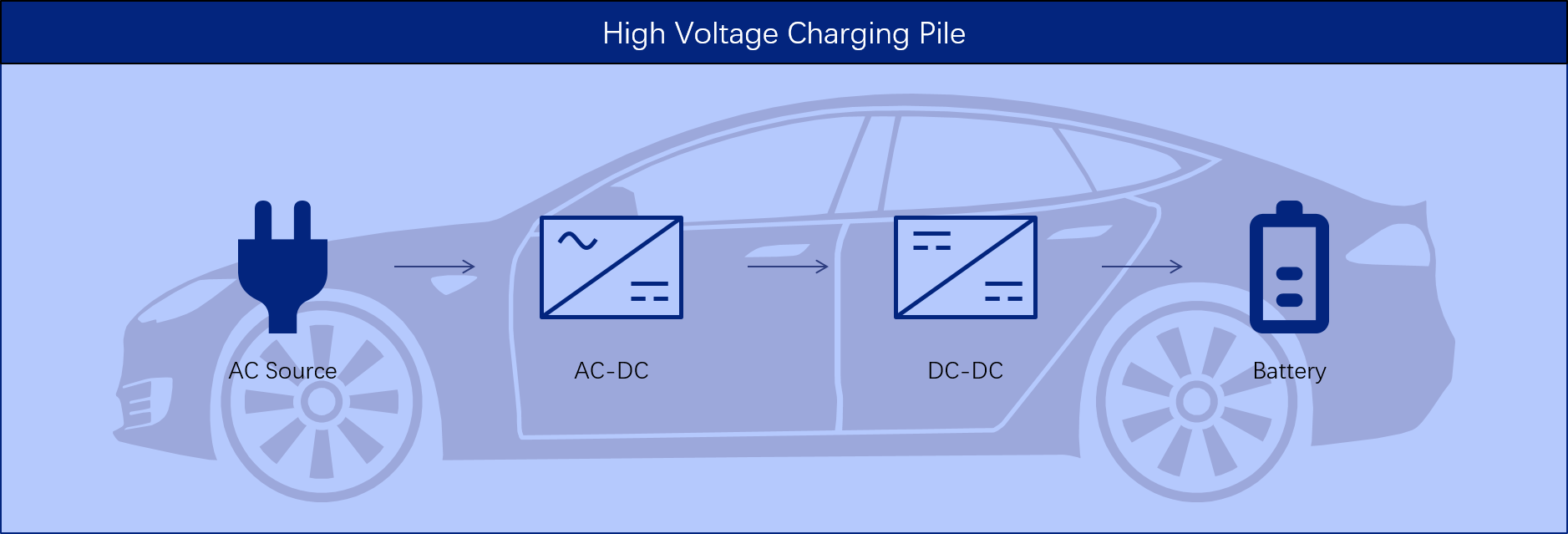

From 7kW AC to High-voltage DC Fast Charging Pile

The external charger converts input external alternating current (AC) into direct current (DC) power mode required by the EV ecosystem and stores it in the battery. Drivers who are accustomed to filling up gas tank in five minutes are not keen to wait hours for their vehicles to be on the road again. The excellent switching speed empowered by Silicon Carbide is the core of a series of new fast chargers that have emerged in laboratories worldwide.



Silicon Carbide Empowers A New Generation Of On-Board Power Systems

In high-power application scenarios such as on-board charging system, traditional silicon-based power devices have shown their limitations. Sanan IC’s Silicon Carbide power devices have superior high-voltage and high-current working capability, which enables them to cope with more challenging power supply applications.


Up to

30%

Lower Losses

Up to

50%

Smaller Size

Up to

10%

Lower System Cost

Products

Power Electronics(5)

Part Number
Type
Voltage (V)
IF (A)
Generation
VF@Tj=25℃ (V)
VF@Tj=175℃ (V)
IFSM@Tc=25℃ (A)
IR max@Tj=25℃ (uA)
Tj(℃)
Package
Qualification

ADS065J004C2

SBD 650 4 @Tc=156℃ Gen-2 1.4 1.8 34 15 -55~175 TO220-2 汽车级

ADS065J020C2

SBD 650 20 @Tc=152℃ Gen-2 1.4 1.6 180 50 -55~175 TO220-2 汽车级

ADS065J040G2

SBD 650 20/40 @Tc=144℃ Gen-2 1.4 1.6 180* 50 -55~175 TO247-3 汽车级

ADS120J020H2

SBD 1200 20 @Tc=149℃ Gen-2 1.45 2.2 180 50 -55~175 TO247-2 汽车级

ADS120J040G2

SBD 1200 20/40 @Tc=142℃ Gen-2 1.45 2.2 180* 50 -55~175 TO247-3 汽车级
