Fourthermore, upcoming 5G era will push this number to a new peak. Cloud service providers are promoting super large-scale data centers to meet the needs of data processing in the new era. At the same time, the demand for higher bandwidth, lower power consumption and optical transceivers with longer service distance is also growing rapidly

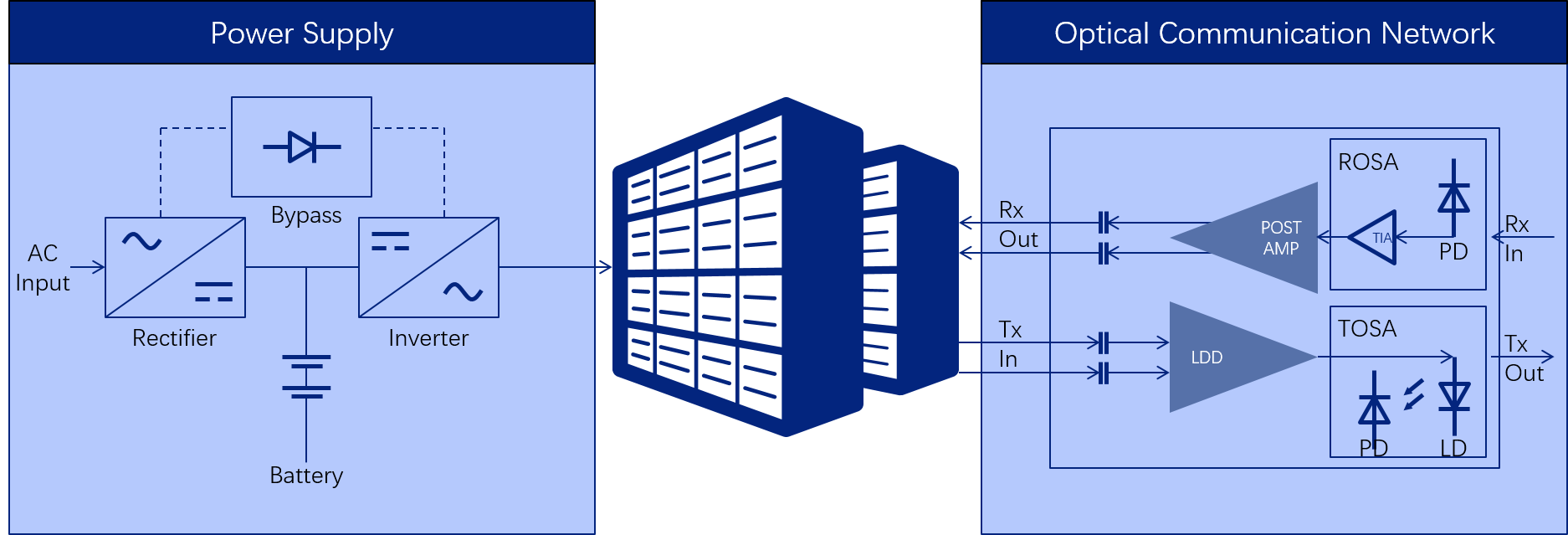

Multi-mode optical fiber makes it possible for us to offer a low-cost and low-power solution with a link length of 300 meters for deployment of data center. And active optical cables enable simple and low-cost interconnection with short-distance interfaces within 20 meters. For these scenarios, Sanan IC’s vertical cavity surface emitting laser (VCSEL) technology has proven reliability and performance, which can meet the interaction needs of networks of modern data center, and interaction needs within and between data centers.
Part Number
|
Chip Type |
Wavelength (nm) |
Rate (Gb/s) |
Surface(um) |
Shape |
Material |
Application |
发布时间 |
---|---|---|---|---|---|---|---|---|
S-11ACPD08-G |
MPD | 1310/1550 | NA | 48400 | Singlet | InGaAs/InP | TOSA背光探测 | 1634024055 |
S-12ACPD08-G |
MPD | 1310/1550 | NA | 48400 | Singlet | InGaAs/InP | TOSA背光探测 | 1634023977 |
S-16ACPD15-G |
MPD | 1310/1550 | NA | 300 | Singlet | InGaAs/InP | TOSA背光探测 | 1634023648 |
S-14AEPD01-G |
Edge MPD | 1310/1550 | NA | 40000 | Singlet | InGaAs/InP | TOSA背光探测 | 1634023609 |
S-12AEPD08-G |
Edge MPD | 1310/1550 | NA | 40000 | Singlet | InGaAs/InP | TOSA背光探测 | 1634023575 |
S-10ACPD02-D |
PD | 1310/1550 | 1.25G | 60 | Singlet | InGaAs/InP | 1.25G EPON | 1634023526 |
S-10ECPD10-G |
PD | 850/1270 | 8G | 35 | Singlet | InGaAs/InP | 彩光PD | 1634023488 |
S-10BCPD10-G |
PD | 1310/1550 | 2.5~8G | 50 | Singlet | InGaAs/InP | 2.5G PON | 1634023450 |
S-14BMPD08-G |
PD | 1310/1550 | 10~12G | 45 | Singlet | InGaAs/InP | 10G LR | 1634023217 |
S-14BCPD25-G |
PD | 1310/1550 | 25G | 16 | Singlet | InGaAs/InP | 1634022838 | |
S-15DMPD11-G |
PD | 1310/1550 | 25G | 20 | Singlet | InGaAs/InP | 25G LR | 1634022808 |
Part Number
|
Type |
Voltage (V) |
IF (A) |
Generation |
VF@Tj=25℃ (V) |
VF@Tj=175℃ (V) |
IFSM@Tc=25℃ (A) |
IR max@Tj=25℃ (uA) |
Tj(℃) |
Package |
Qualification |
---|---|---|---|---|---|---|---|---|---|---|---|
SDS065J002D2 |
SBD | 650 | 2 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 22 | 10 | -55~175 | TO252-2 | 工业级 |
SDS065J002C2 |
SBD | 650 | 2 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 22 | 10 | -55~175 | TO220-2 | 工业级 |
SDS065J004D2 |
SBD | 650 | 4 @Tc=156℃ | Gen-2 | 1.4 | 1.8 | 34 | 15 | -55~175 | TO252-2 | 工业级 |
SDS065J004C2 |
SBD | 650 | 4 @Tc=156℃ | Gen-2 | 1.4 | 1.8 | 34 | 15 | -55~175 | TO220-2 | 工业级 |
SDS065J006N2 |
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO220N-2 | 工业级 |
SDS065J006E2 |
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.8 | 54 | 20 | -55~175 | TO263-2 | 工业级 |
SDS065J006D2 |
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO252-2 | 工业级 |
SDS065J006C2 |
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO220-2 | 工业级 |
SDS065J008E2 |
SBD | 650 | 8 @Tc=151℃ | Gen-2 | 1.4 | 1.75 | 64 | 25 | -55~175 | TO263-2 | 工业级 |
SDS065J008D2 |
SBD | 650 | 8 @Tc=153℃ | Gen-2 | 1.5 | 1.9 | 65 | 25 | -55~175 | TO252-2 | 工业级 |
SDS065J008C2 |
SBD | 650 | 8 @Tc=153℃ | Gen-2 | 1.4 | 1.75 | 64 | 25 | -55~175 | TO220-2 | 工业级 |
SDS065J010N2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220N-2 | 工业级 |
SDS065J010F2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220F-2 | 工业级 |
SDS065J010E2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.8 | 80 | 40 | -55~175 | TO263-2 | 工业级 |
SDS065J010D2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO252-2 | 工业级 |
SDS065J010C2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220-2 | 工业级 |
SDS065J010G2 |
SBD | 650 | 5/10 @Tc=155℃ | Gen-2 | 1.35 | 1.6 | 51* | 20 | -55~175 | TO247-3 | 工业级 |
SDS065J012C2 |
SBD | 650 | 12 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 96 | 35 | -55~175 | TO220-2 | 工业级 |
SDS065J016H2 |
SBD | 650 | 16 @Tc=147℃ | Gen-2 | 1.4 | 1.7 | 136 | 40 | -55~175 | TO247-2 | 工业级 |
SDS065J016C2 |
SBD | 650 | 16 @Tc=147℃ | Gen-2 | 1.4 | 1.7 | 136 | 40 | -55~175 | TO220-2 | 工业级 |
SDS065J020G2 |
SBD | 650 | 10/20 @Tc=147℃ | Gen-2 | 1.45 | 1.75 | 80* | 40 | -55~175 | TO247-3 | 工业级 |
SDS065J020H2 |
SBD | 650 | 20 @Tc=148℃ | Gen-2 | 1.4 | 1.6 | 165 | 50 | -55~175 | TO247-2 | 工业级 |
SDS065J020F2 |
SBD | 650 | 13 @Tc=135℃ | Gen-2 | 1.4 | 1.6 | 180 | 50 | -55~175 | TO220F-2 | 工业级 |
SDS065J020C2 |
SBD | 650 | 20 @Tc=152℃ | Gen-2 | 1.4 | 1.6 | 180 | 50 | -55~175 | TO220-2 | 工业级 |
SDS065J030G2 |
SBD | 650 | 15/30 @Tc=147℃ | Gen-2 | 1.4 | 1.6 | 136* | 50 | -55~175 | TO247-3 | 工业级 |
SDS065J040G2 |
SBD | 650 | 20/40 @Tc=144℃ | Gen-2 | 1.4 | 1.6 | 180* | 50 | -55~175 | TO247-3 | 工业级 |
SDS065J060A |
SBD | 650 | 60 @Tc=123℃ | Gen-2 | 1.45 | 1.7 | 480 | 150 | -55~175 | SOT227 | 工业级 |
SDS065J080A |
SBD | 650 | 80 @Tc=122℃ | Gen-2 | 1.45 | 1.7 | 640 | 200 | -55~175 | SOT227 | 工业级 |
SDS065J100A |
SBD | 650 | 100 @Tc=120℃ | Gen-2 | 1.45 | 1.7 | 800 | 200 | -55~175 | SOT227 | 工业级 |
SDS120J002D2 |
SBD | 1200 | 2 @Tc=155℃ | Gen-2 | 1.4 | 2.05 | 27 | 10 | -55~175 | TO252-2 | 工业级 |
SDS120J002C2 |
SBD | 1200 | 2 @Tc=155℃ | Gen-2 | 1.4 | 2.05 | 27 | 10 | -55~175 | TO220-2 | 工业级 |
SDS120J005D2 |
SBD | 1200 | 5 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55 | 15 | -55~175 | TO252-2 | 工业级 |
SDS120J005C2 |
SBD | 1200 | 5 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55 | 15 | -55~175 | TO220-2 | 工业级 |
SDS120J010H2 |
SBD | 1200 | 10 @Tc=150℃ | Gen-2 | 1.4 | 2.1 | 95 | 30 | -55~175 | TO247-2 | 工业级 |
SDS120J010E2 |
SBD | 1200 | 10 @Tc=150℃ | Gen-2 | 1.5 | 2.2 | 95 | 30 | -55~175 | TO263-2 | 工业级 |
SDS120J010G2 |
SBD | 1200 | 5/10 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55* | 15 | -55~175 | TO247-3 | 工业级 |
SDS120J010C2 |
SBD | 1200 | 10 @Tc=152℃ | Gen-2 | 1.45 | 2.2 | 95 | 30 | -55~175 | TO220-2 | 工业级 |
SDS120J015H2 |
SBD | 1200 | 15 @Tc=150℃ | Gen-2 | 1.45 | 2 | 150 | 40 | -55~175 | TO247-2 | 工业级 |
SDS120J015C2 |
SBD | 1200 | 15 @Tc=150℃ | Gen-2 | 1.45 | 2 | 150 | 40 | -55~175 | TO220-2 | 工业级 |
SDS120J020H2 |
SBD | 1200 | 20 @Tc=146℃ | Gen-2 | 1.45 | 2.2 | 180 | 50 | -55~175 | TO247-2 | 工业级 |
SDS120J020C2 |
SBD | 1200 | 20 @Tc=146℃ | Gen-2 | 1.45 | 2.2 | 205 | 50 | -55~175 | TO220-2 | 工业级 |
SDS120J020G2 |
SBD | 1200 | 10/20 @Tc=150℃ | Gen-2 | 1.45 | 2.2 | 95* | 30 | -55~175 | TO247-3 | 工业级 |
SDS120J030G2 |
SBD | 1200 | 15/30 @Tc=144℃ | Gen-2 | 1.45 | 2 | 150* | 40 | -55~175 | TO247-3 | 工业级 |
SDS120J040G2 |
SBD | 1200 | 20/40 @Tc=142℃ | Gen-2 | 1.45 | 2.2 | 180* | 50 | -55~175 | TO247-3 | 工业级 |
SDS120J040H2 |
SBD | 1200 | 40 @Tc=135℃ | Gen-2 | 1.5 | 2.25 | 320 | 100 | -55~175 | TO247-2 | 工业级 |
SDS120J060A |
SBD | 1200 | 60 @Tc=121℃ | Gen-2 | 1.6 | 2.2 | 480 | 120 | -55~175 | SOT227 | 工业级 |
SDS120J080A |
SBD | 1200 | 80 @Tc=125℃ | Gen-2 | 1.55 | 2.1 | 640 | 160 | -55~175 | SOT227 | 工业级 |
SDS120J100A |
SBD | 1200 | 100 @Tc=138℃ | Gen-2 | 1.55 | 2.1 | 800 | 200 | -55~175 | SOT227 | 工业级 |
SDS065J004C3 |
SBD | 650 | 4 @Tc=150℃ | Gen-3 | 1.35 | 1.55 | 34 | 12 | -55~175 | TO220-2 | 工业级 |
SDS065J006C3 |
SBD | 650 | 6 @Tc=150℃ | Gen-3 | 1.3 | 1.55 | 54 | 18 | -55~175 | TO220-2 | 工业级 |
SDS065J008S3 |
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 68 | 20 | -55~175 | DFN8*8 | 工业级 |
SDS065J008N3 |
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 68 | 20 | -55~175 | TO220N-2 | 工业级 |
SDS065J008C3 |
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 65 | 20 | -55~175 | TO220-2 | 工业级 |
SDS065J010S3 |
SBD | 650 | 10 @Tc=155℃ | Gen-3 | 1.3 | 1.6 | 80 | 20 | -55~175 | DFN8*8 | 工业级 |
SDS065J010C3 |
SBD | 650 | 10 @Tc=155℃ | Gen-3 | 1.25 | 1.45 | 80 | 20 | -55~175 | TO220-2 | 工业级 |
SDS065J012C3 |
SBD | 650 | 12 @Tc=150℃ | Gen-3 | 1.3 | 1.5 | 108 | 36 | -55~175 | TO220-2 | 工业级 |
SDS065J016C3 |
SBD | 650 | 16 @Tc=150℃ | Gen-3 | 1.3 | 1.55 | 135 | 48 | -55~175 | TO220-2 | 工业级 |
SDS065J020C3 |
SBD | 650 | 20 @TC=140℃ | Gen-3 | 1.35 | 1.55 | 140 | 60 | -55~175 | TO220-2 | 工业级 |
SDS120J020H3 |
SBD | 1200 | 20 @TC=140℃ | Gen-3 | 1.5 | 2.3 | 150 | 50 | -55~175 | TO247-2 | 工业级 |
SDS120J030H3 |
SBD | 1200 | 30 @Tc=137℃ | Gen-3 | 1.45 | 2.25 | 240 | 80 | -55~175 | TO247-2 | 工业级 |
