SAW Filters

Introduction

Products

Applications

High Performance, Excellent Quality and a Complete Set of Frequency Band Combinations

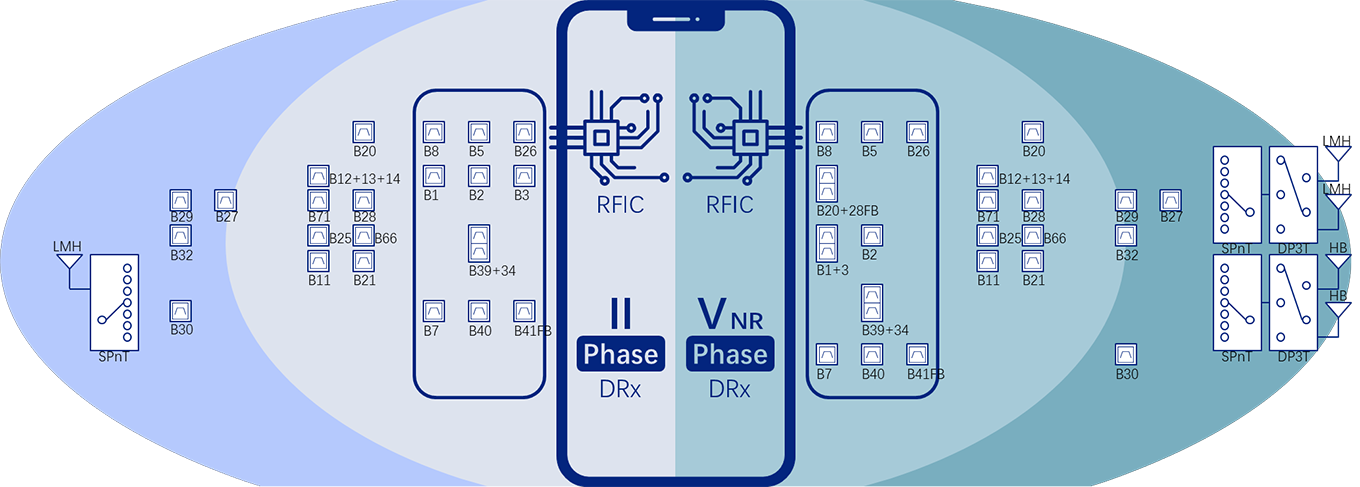

Sanan IC is committed to RF solutionsfor the interconnected world. The company's SAW filters are aimed for high performance and high quality for variety of band combinations.Sanan IC provides flexible solutions from discrete to integrated RF front-end architectures, and cooperates with professional service technicians with simulation and debugging, thereby shortening the R & D cycle of wireless communication products and expanding its support areas.


Products

料号
类型
应用场景
封装尺寸 (L*W*H mm)
认证级别
输入功率 (dBm)
插损 (dB)
工作温度 (°C)

LAS0882A17

Normal-SAW B5 Rx 1.1*0.9*0.5 Consumer Level +15 1.4 -30~85

LAS0943A15

Normal-SAW B8 Rx 1.1*0.9*0.5 Consumer Level +15 2.1 -30~85

LAS0877A16

Normal-SAW B26 Rx 1.1*0.9*0.5 Consumer Level +15 1.9 -30~85

LAS2140A18

Normal-SAW B1 Rx 1.1*0.9*0.5 Consumer Level +15 1.7 -30~85

LAS1960A0W

Normal-SAW B2 Rx 1.1*0.9*0.5 Consumer Level +15 1.9 -30~85

LAS1843A0A

Normal-SAW B3 Rx 1.1*0.9*0.5 Consumer Level +15 2.3 -30~85

LBB2140D19

Normal-SAW B1+3 Rx 1.5*1.1*0.5 Consumer Level +15 LB 1.8/HB 1.7 -30~85

LBB2018D0D

Normal-SAW B34+39 TRx_1i1o 1.5*1.1*0.5 Consumer Level +30 Tx 1.4/Rx 1.4 -30~85

LBB2018D0Z

Normal-SAW B34+39 TRx_1i2o 1.5*1.1*0.5 Consumer Level +30 Tx 1.4/Rx 1.4 -30~85

LBD0882B0G

Normal-SAW B5 DPX 1.8*1.4*0.5 Consumer Level +30 Tx 1.4/Rx 1.4 -30~85

LBD2140B0F

Normal-SAW B1 DPX 1.8*1.4*0.5 Consumer Level +30 Tx 1.7/Rx 1.8 -30~85

RAD0943B0Q

TC-SAW B8 DPX 1.8*1.4*0.5 Consumer Level +30 Tx 1.6/Rx 1.9 -30~85

RAD1843B09

TC-SAW B3 DPX 1.8*1.4*0.5 Consumer Level +30 Tx 1.5/Rx 2.0 -30~85

RAD1960B0K

TC-SAW B2 DPX 1.8*1.4*0.5 Consumer Level +30 Tx 1.6/Rx 1.9 -30~85

LBD2655B12

Normal-SAW B7 DPX 1.8*1.4*0.5 Consumer Level +30 Tx 1.8/Rx 2.1 -30~85

RBQ2140E0H

TC-SAW B1+3 QPX 2.5*2.0*0.5 Consumer Level +30 LB 1.8/HB 1.8 -30~85

LBD0882G14

Normal-SAW B5 DPX 1.6*1.2*0.5 Consumer Level +30 Tx 1.4/Rx 1.4 -30~85

LBD2140G13

Normal-SAW B1 DPX 1.6*1.2*0.5 Consumer Level +30 Tx 1.5/Rx 1.6 -30~85
