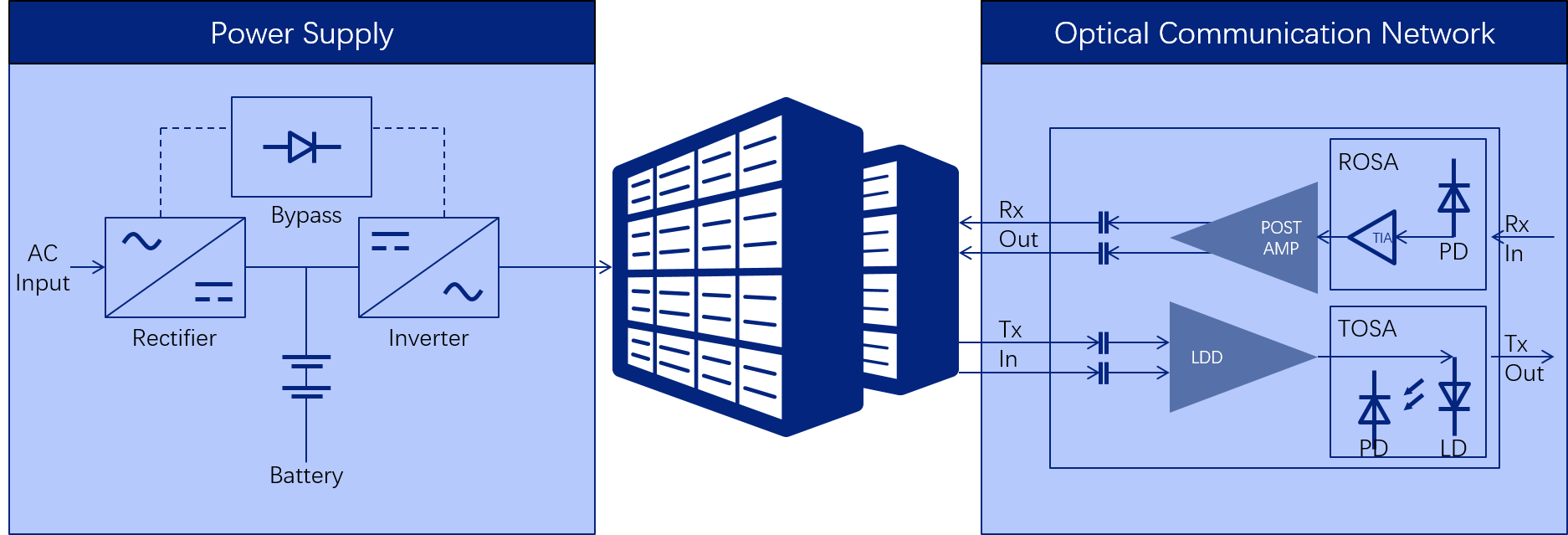

When data centers use Sanan IC’s Silicon Carbide MOSFETs and diodes to build power supplies, they can provide higher computing power per square foot with lower electricity bills.
Global electrical energy consumed by data centers continues to grow. The power supply designed with Sanan IC Silicon Carbide products can fully improve thermal performance, and save up to 40% of energy costs for cooling alone. From 2010 to 2020, servers with SiC devices will contribute 620 billion kilowatt-hours of energy savings. Sanan IC products are ready to meet more stringent standards in the future.
Part Number
|
Type
|
Voltage (V)
|
IF (A)
|
Generation
|
VF@Tj=25℃ (V）
|
VF@Tj=175℃ (V）
|
IFSM@Tc=25℃ (A)
|
IR max@Tj=25℃ (uA）
|
Tj(℃)
|
Package
|
Qualification
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDS065J002D2
|
SBD | 650 | 2 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 22 | 10 | -55~175 | TO252-2 | 工业级 |
|
SDS065J002C2
|
SBD | 650 | 2 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 22 | 10 | -55~175 | TO220-2 | 工业级 |
|
SDS065J004D2
|
SBD | 650 | 4 @Tc=156℃ | Gen-2 | 1.4 | 1.8 | 34 | 15 | -55~175 | TO252-2 | 工业级 |
|
SDS065J004C2
|
SBD | 650 | 4 @Tc=156℃ | Gen-2 | 1.4 | 1.8 | 34 | 15 | -55~175 | TO220-2 | 工业级 |
|
SDS065J006N2
|
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO220N-2 | 工业级 |
|
SDS065J006E2
|
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.8 | 54 | 20 | -55~175 | TO263-2 | 工业级 |
|
SDS065J006D2
|
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO252-2 | 工业级 |
|
SDS065J006C2
|
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO220-2 | 工业级 |
|
SDS065J008E2
|
SBD | 650 | 8 @Tc=151℃ | Gen-2 | 1.4 | 1.75 | 64 | 25 | -55~175 | TO263-2 | 工业级 |
|
SDS065J008D2
|
SBD | 650 | 8 @Tc=153℃ | Gen-2 | 1.5 | 1.9 | 65 | 25 | -55~175 | TO252-2 | 工业级 |
|
SDS065J008C2
|
SBD | 650 | 8 @Tc=153℃ | Gen-2 | 1.4 | 1.75 | 64 | 25 | -55~175 | TO220-2 | 工业级 |
|
SDS065J010N2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220N-2 | 工业级 |
|
SDS065J010F2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220F-2 | 工业级 |
|
SDS065J010E2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.8 | 80 | 40 | -55~175 | TO263-2 | 工业级 |
|
SDS065J010D2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO252-2 | 工业级 |
|
SDS065J010C2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220-2 | 工业级 |
|
SDS065J010G2
|
SBD | 650 | 5/10 @Tc=155℃ | Gen-2 | 1.35 | 1.6 | 51* | 20 | -55~175 | TO247-3 | 工业级 |
|
SDS065J012C2
|
SBD | 650 | 12 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 96 | 35 | -55~175 | TO220-2 | 工业级 |
|
SDS065J016H2
|
SBD | 650 | 16 @Tc=147℃ | Gen-2 | 1.4 | 1.7 | 136 | 40 | -55~175 | TO247-2 | 工业级 |
|
SDS065J016C2
|
SBD | 650 | 16 @Tc=147℃ | Gen-2 | 1.4 | 1.7 | 136 | 40 | -55~175 | TO220-2 | 工业级 |
|
SDS065J020G2
|
SBD | 650 | 10/20 @Tc=147℃ | Gen-2 | 1.45 | 1.75 | 80* | 40 | -55~175 | TO247-3 | 工业级 |
|
SDS065J020H2
|
SBD | 650 | 20 @Tc=148℃ | Gen-2 | 1.4 | 1.6 | 165 | 50 | -55~175 | TO247-2 | 工业级 |
|
SDS065J020F2
|
SBD | 650 | 13 @Tc=135℃ | Gen-2 | 1.4 | 1.6 | 180 | 50 | -55~175 | TO220F-2 | 工业级 |
|
SDS065J020C2
|
SBD | 650 | 20 @Tc=152℃ | Gen-2 | 1.4 | 1.6 | 180 | 50 | -55~175 | TO220-2 | 工业级 |
|
SDS065J030G2
|
SBD | 650 | 15/30 @Tc=147℃ | Gen-2 | 1.4 | 1.6 | 136* | 50 | -55~175 | TO247-3 | 工业级 |
|
SDS065J040G2
|
SBD | 650 | 20/40 @Tc=144℃ | Gen-2 | 1.4 | 1.6 | 180* | 50 | -55~175 | TO247-3 | 工业级 |
|
SDS065J060A
|
SBD | 650 | 60 @Tc=123℃ | Gen-2 | 1.45 | 1.7 | 480 | 150 | -55~175 | SOT227 | 工业级 |
|
SDS065J080A
|
SBD | 650 | 80 @Tc=122℃ | Gen-2 | 1.45 | 1.7 | 640 | 200 | -55~175 | SOT227 | 工业级 |
|
SDS065J100A
|
SBD | 650 | 100 @Tc=120℃ | Gen-2 | 1.45 | 1.7 | 800 | 200 | -55~175 | SOT227 | 工业级 |
|
SDS120J002D2
|
SBD | 1200 | 2 @Tc=155℃ | Gen-2 | 1.4 | 2.05 | 27 | 10 | -55~175 | TO252-2 | 工业级 |
|
SDS120J002C2
|
SBD | 1200 | 2 @Tc=155℃ | Gen-2 | 1.4 | 2.05 | 27 | 10 | -55~175 | TO220-2 | 工业级 |
|
SDS120J005D2
|
SBD | 1200 | 5 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55 | 15 | -55~175 | TO252-2 | 工业级 |
|
SDS120J005C2
|
SBD | 1200 | 5 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55 | 15 | -55~175 | TO220-2 | 工业级 |
|
SDS120J010H2
|
SBD | 1200 | 10 @Tc=150℃ | Gen-2 | 1.4 | 2.1 | 95 | 30 | -55~175 | TO247-2 | 工业级 |
|
SDS120J010E2
|
SBD | 1200 | 10 @Tc=150℃ | Gen-2 | 1.5 | 2.2 | 95 | 30 | -55~175 | TO263-2 | 工业级 |
|
SDS120J010G2
|
SBD | 1200 | 5/10 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55* | 15 | -55~175 | TO247-3 | 工业级 |
|
SDS120J010C2
|
SBD | 1200 | 10 @Tc=152℃ | Gen-2 | 1.45 | 2.2 | 95 | 30 | -55~175 | TO220-2 | 工业级 |
|
SDS120J015H2
|
SBD | 1200 | 15 @Tc=150℃ | Gen-2 | 1.45 | 2 | 150 | 40 | -55~175 | TO247-2 | 工业级 |
|
SDS120J015C2
|
SBD | 1200 | 15 @Tc=150℃ | Gen-2 | 1.45 | 2 | 150 | 40 | -55~175 | TO220-2 | 工业级 |
|
SDS120J020H2
|
SBD | 1200 | 20 @Tc=146℃ | Gen-2 | 1.45 | 2.2 | 180 | 50 | -55~175 | TO247-2 | 工业级 |
|
SDS120J020C2
|
SBD | 1200 | 20 @Tc=146℃ | Gen-2 | 1.45 | 2.2 | 205 | 50 | -55~175 | TO220-2 | 工业级 |
|
SDS120J020G2
|
SBD | 1200 | 10/20 @Tc=150℃ | Gen-2 | 1.45 | 2.2 | 95* | 30 | -55~175 | TO247-3 | 工业级 |
|
SDS120J030G2
|
SBD | 1200 | 15/30 @Tc=144℃ | Gen-2 | 1.45 | 2 | 150* | 40 | -55~175 | TO247-3 | 工业级 |
|
SDS120J040G2
|
SBD | 1200 | 20/40 @Tc=142℃ | Gen-2 | 1.45 | 2.2 | 180* | 50 | -55~175 | TO247-3 | 工业级 |
|
SDS120J040H2
|
SBD | 1200 | 40 @Tc=135℃ | Gen-2 | 1.5 | 2.25 | 320 | 100 | -55~175 | TO247-2 | 工业级 |
|
SDS120J060A
|
SBD | 1200 | 60 @Tc=121℃ | Gen-2 | 1.6 | 2.2 | 480 | 120 | -55~175 | SOT227 | 工业级 |
|
SDS120J080A
|
SBD | 1200 | 80 @Tc=125℃ | Gen-2 | 1.55 | 2.1 | 640 | 160 | -55~175 | SOT227 | 工业级 |
|
SDS120J100A
|
SBD | 1200 | 100 @Tc=138℃ | Gen-2 | 1.55 | 2.1 | 800 | 200 | -55~175 | SOT227 | 工业级 |
|
SDS065J004C3
|
SBD | 650 | 4 @Tc=150℃ | Gen-3 | 1.35 | 1.55 | 34 | 12 | -55~175 | TO220-2 | 工业级 |
|
SDS065J006C3
|
SBD | 650 | 6 @Tc=150℃ | Gen-3 | 1.3 | 1.55 | 54 | 18 | -55~175 | TO220-2 | 工业级 |
|
SDS065J008S3
|
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 68 | 20 | -55~175 | DFN8*8 | 工业级 |
|
SDS065J008N3
|
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 68 | 20 | -55~175 | TO220N-2 | 工业级 |
|
SDS065J008C3
|
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 65 | 20 | -55~175 | TO220-2 | 工业级 |
|
SDS065J010S3
|
SBD | 650 | 10 @Tc=155℃ | Gen-3 | 1.3 | 1.6 | 80 | 20 | -55~175 | DFN8*8 | 工业级 |
|
SDS065J010C3
|
SBD | 650 | 10 @Tc=155℃ | Gen-3 | 1.25 | 1.45 | 80 | 20 | -55~175 | TO220-2 | 工业级 |
|
SDS065J012C3
|
SBD | 650 | 12 @Tc=150℃ | Gen-3 | 1.3 | 1.5 | 108 | 36 | -55~175 | TO220-2 | 工业级 |
|
SDS065J016C3
|
SBD | 650 | 16 @Tc=150℃ | Gen-3 | 1.3 | 1.55 | 135 | 48 | -55~175 | TO220-2 | 工业级 |
|
SDS065J020C3
|
SBD | 650 | 20 @TC=140℃ | Gen-3 | 1.35 | 1.55 | 140 | 60 | -55~175 | TO220-2 | 工业级 |
|
SDS120J020H3
|
SBD | 1200 | 20 @TC=140℃ | Gen-3 | 1.5 | 2.3 | 150 | 50 | -55~175 | TO247-2 | 工业级 |
|
SDS120J030H3
|
SBD | 1200 | 30 @Tc=137℃ | Gen-3 | 1.45 | 2.25 | 240 | 80 | -55~175 | TO247-2 | 工业级 |
