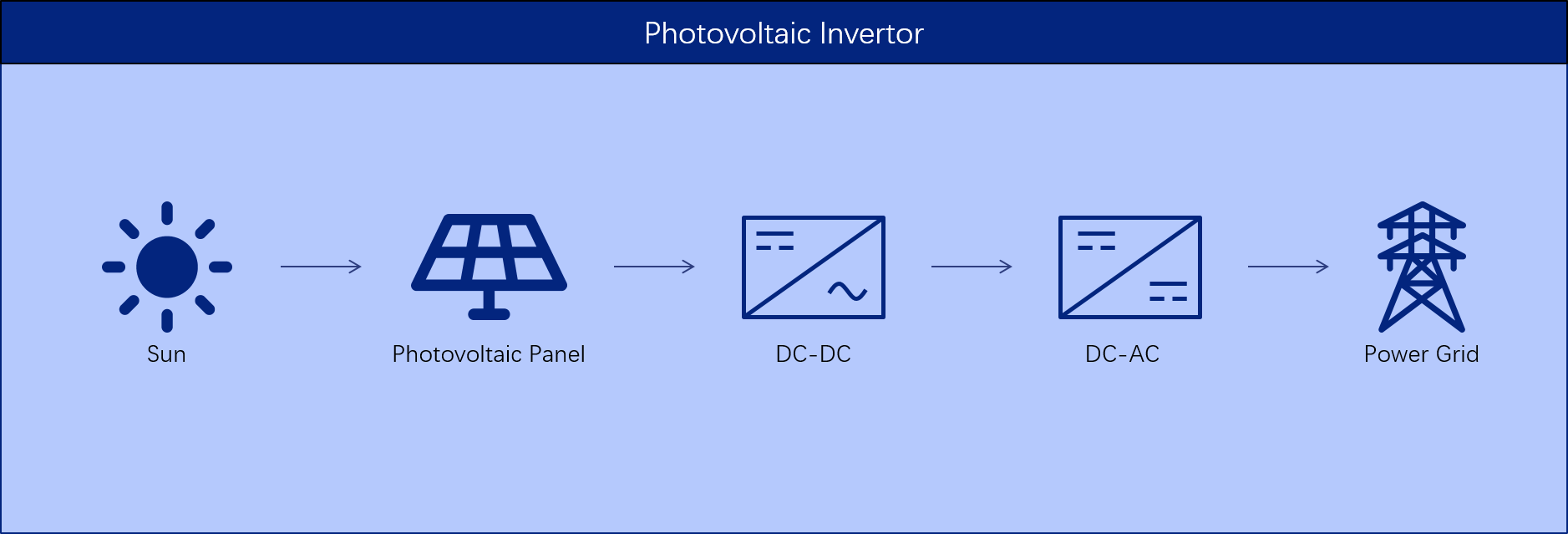

the energy radiation of the sun when it illuminates the earth for one hour exceeds the energy consumption of the entire earth for a whole year. How to convert such a huge and clean energy source into a resource that can be utilized by human society is an important proposition that many energy conversion system designers think about.
What can be foreseen is that under the goal of "Carbon Neutral", the civilian and commercial users of solar energy will grow rapidly in the future of sustainable development. The control of clean energy requires more sophisticated technology and higher reliability. Sanan IC' Silicon Carbide power devices are manufactured for the needs.
Part Number
|
Type
|
Voltage (V)
|
IF (A)
|
Generation
|
VF@Tj=25℃ (V）
|
VF@Tj=175℃ (V）
|
IFSM@Tc=25℃ (A)
|
IR max@Tj=25℃ (uA）
|
Tj(℃)
|
Package
|
Qualification
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDS065J002D2
|
SBD | 650 | 2 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 22 | 10 | -55~175 | TO252-2 | 工业级 |
|
SDS065J002C2
|
SBD | 650 | 2 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 22 | 10 | -55~175 | TO220-2 | 工业级 |
|
SDS065J004D2
|
SBD | 650 | 4 @Tc=156℃ | Gen-2 | 1.4 | 1.8 | 34 | 15 | -55~175 | TO252-2 | 工业级 |
|
SDS065J004C2
|
SBD | 650 | 4 @Tc=156℃ | Gen-2 | 1.4 | 1.8 | 34 | 15 | -55~175 | TO220-2 | 工业级 |
|
SDS065J006N2
|
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO220N-2 | 工业级 |
|
SDS065J006E2
|
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.8 | 54 | 20 | -55~175 | TO263-2 | 工业级 |
|
SDS065J006D2
|
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO252-2 | 工业级 |
|
SDS065J006C2
|
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO220-2 | 工业级 |
|
SDS065J008E2
|
SBD | 650 | 8 @Tc=151℃ | Gen-2 | 1.4 | 1.75 | 64 | 25 | -55~175 | TO263-2 | 工业级 |
|
SDS065J008D2
|
SBD | 650 | 8 @Tc=153℃ | Gen-2 | 1.5 | 1.9 | 65 | 25 | -55~175 | TO252-2 | 工业级 |
|
SDS065J008C2
|
SBD | 650 | 8 @Tc=153℃ | Gen-2 | 1.4 | 1.75 | 64 | 25 | -55~175 | TO220-2 | 工业级 |
|
SDS065J010N2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220N-2 | 工业级 |
|
SDS065J010F2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220F-2 | 工业级 |
|
SDS065J010E2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.8 | 80 | 40 | -55~175 | TO263-2 | 工业级 |
|
SDS065J010D2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO252-2 | 工业级 |
|
SDS065J010C2
|
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220-2 | 工业级 |
|
SDS065J010G2
|
SBD | 650 | 5/10 @Tc=155℃ | Gen-2 | 1.35 | 1.6 | 51* | 20 | -55~175 | TO247-3 | 工业级 |
|
SDS065J012C2
|
SBD | 650 | 12 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 96 | 35 | -55~175 | TO220-2 | 工业级 |
|
SDS065J016H2
|
SBD | 650 | 16 @Tc=147℃ | Gen-2 | 1.4 | 1.7 | 136 | 40 | -55~175 | TO247-2 | 工业级 |
|
SDS065J016C2
|
SBD | 650 | 16 @Tc=147℃ | Gen-2 | 1.4 | 1.7 | 136 | 40 | -55~175 | TO220-2 | 工业级 |
|
SDS065J020G2
|
SBD | 650 | 10/20 @Tc=147℃ | Gen-2 | 1.45 | 1.75 | 80* | 40 | -55~175 | TO247-3 | 工业级 |
|
SDS065J020H2
|
SBD | 650 | 20 @Tc=148℃ | Gen-2 | 1.4 | 1.6 | 165 | 50 | -55~175 | TO247-2 | 工业级 |
|
SDS065J020F2
|
SBD | 650 | 13 @Tc=135℃ | Gen-2 | 1.4 | 1.6 | 180 | 50 | -55~175 | TO220F-2 | 工业级 |
|
SDS065J020C2
|
SBD | 650 | 20 @Tc=152℃ | Gen-2 | 1.4 | 1.6 | 180 | 50 | -55~175 | TO220-2 | 工业级 |
|
SDS065J030G2
|
SBD | 650 | 15/30 @Tc=147℃ | Gen-2 | 1.4 | 1.6 | 136* | 50 | -55~175 | TO247-3 | 工业级 |
|
SDS065J040G2
|
SBD | 650 | 20/40 @Tc=144℃ | Gen-2 | 1.4 | 1.6 | 180* | 50 | -55~175 | TO247-3 | 工业级 |
|
SDS065J060A
|
SBD | 650 | 60 @Tc=123℃ | Gen-2 | 1.45 | 1.7 | 480 | 150 | -55~175 | SOT227 | 工业级 |
|
SDS065J080A
|
SBD | 650 | 80 @Tc=122℃ | Gen-2 | 1.45 | 1.7 | 640 | 200 | -55~175 | SOT227 | 工业级 |
|
SDS065J100A
|
SBD | 650 | 100 @Tc=120℃ | Gen-2 | 1.45 | 1.7 | 800 | 200 | -55~175 | SOT227 | 工业级 |
|
SDS120J002D2
|
SBD | 1200 | 2 @Tc=155℃ | Gen-2 | 1.4 | 2.05 | 27 | 10 | -55~175 | TO252-2 | 工业级 |
|
SDS120J002C2
|
SBD | 1200 | 2 @Tc=155℃ | Gen-2 | 1.4 | 2.05 | 27 | 10 | -55~175 | TO220-2 | 工业级 |
|
SDS120J005D2
|
SBD | 1200 | 5 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55 | 15 | -55~175 | TO252-2 | 工业级 |
|
SDS120J005C2
|
SBD | 1200 | 5 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55 | 15 | -55~175 | TO220-2 | 工业级 |
|
SDS120J010H2
|
SBD | 1200 | 10 @Tc=150℃ | Gen-2 | 1.4 | 2.1 | 95 | 30 | -55~175 | TO247-2 | 工业级 |
|
SDS120J010E2
|
SBD | 1200 | 10 @Tc=150℃ | Gen-2 | 1.5 | 2.2 | 95 | 30 | -55~175 | TO263-2 | 工业级 |
|
SDS120J010G2
|
SBD | 1200 | 5/10 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55* | 15 | -55~175 | TO247-3 | 工业级 |
|
SDS120J010C2
|
SBD | 1200 | 10 @Tc=152℃ | Gen-2 | 1.45 | 2.2 | 95 | 30 | -55~175 | TO220-2 | 工业级 |
|
SDS120J015H2
|
SBD | 1200 | 15 @Tc=150℃ | Gen-2 | 1.45 | 2 | 150 | 40 | -55~175 | TO247-2 | 工业级 |
|
SDS120J015C2
|
SBD | 1200 | 15 @Tc=150℃ | Gen-2 | 1.45 | 2 | 150 | 40 | -55~175 | TO220-2 | 工业级 |
|
SDS120J020H2
|
SBD | 1200 | 20 @Tc=146℃ | Gen-2 | 1.45 | 2.2 | 180 | 50 | -55~175 | TO247-2 | 工业级 |
|
SDS120J020C2
|
SBD | 1200 | 20 @Tc=146℃ | Gen-2 | 1.45 | 2.2 | 205 | 50 | -55~175 | TO220-2 | 工业级 |
|
SDS120J020G2
|
SBD | 1200 | 10/20 @Tc=150℃ | Gen-2 | 1.45 | 2.2 | 95* | 30 | -55~175 | TO247-3 | 工业级 |
|
SDS120J030G2
|
SBD | 1200 | 15/30 @Tc=144℃ | Gen-2 | 1.45 | 2 | 150* | 40 | -55~175 | TO247-3 | 工业级 |
|
SDS120J040G2
|
SBD | 1200 | 20/40 @Tc=142℃ | Gen-2 | 1.45 | 2.2 | 180* | 50 | -55~175 | TO247-3 | 工业级 |
|
SDS120J040H2
|
SBD | 1200 | 40 @Tc=135℃ | Gen-2 | 1.5 | 2.25 | 320 | 100 | -55~175 | TO247-2 | 工业级 |
|
SDS120J060A
|
SBD | 1200 | 60 @Tc=121℃ | Gen-2 | 1.6 | 2.2 | 480 | 120 | -55~175 | SOT227 | 工业级 |
|
SDS120J080A
|
SBD | 1200 | 80 @Tc=125℃ | Gen-2 | 1.55 | 2.1 | 640 | 160 | -55~175 | SOT227 | 工业级 |
|
SDS120J100A
|
SBD | 1200 | 100 @Tc=138℃ | Gen-2 | 1.55 | 2.1 | 800 | 200 | -55~175 | SOT227 | 工业级 |
|
SDS065J004C3
|
SBD | 650 | 4 @Tc=150℃ | Gen-3 | 1.35 | 1.55 | 34 | 12 | -55~175 | TO220-2 | 工业级 |
|
SDS065J006C3
|
SBD | 650 | 6 @Tc=150℃ | Gen-3 | 1.3 | 1.55 | 54 | 18 | -55~175 | TO220-2 | 工业级 |
|
SDS065J008S3
|
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 68 | 20 | -55~175 | DFN8*8 | 工业级 |
|
SDS065J008N3
|
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 68 | 20 | -55~175 | TO220N-2 | 工业级 |
|
SDS065J008C3
|
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 65 | 20 | -55~175 | TO220-2 | 工业级 |
|
SDS065J010S3
|
SBD | 650 | 10 @Tc=155℃ | Gen-3 | 1.3 | 1.6 | 80 | 20 | -55~175 | DFN8*8 | 工业级 |
|
SDS065J010C3
|
SBD | 650 | 10 @Tc=155℃ | Gen-3 | 1.25 | 1.45 | 80 | 20 | -55~175 | TO220-2 | 工业级 |
|
SDS065J012C3
|
SBD | 650 | 12 @Tc=150℃ | Gen-3 | 1.3 | 1.5 | 108 | 36 | -55~175 | TO220-2 | 工业级 |
|
SDS065J016C3
|
SBD | 650 | 16 @Tc=150℃ | Gen-3 | 1.3 | 1.55 | 135 | 48 | -55~175 | TO220-2 | 工业级 |
|
SDS065J020C3
|
SBD | 650 | 20 @TC=140℃ | Gen-3 | 1.35 | 1.55 | 140 | 60 | -55~175 | TO220-2 | 工业级 |
|
SDS120J020H3
|
SBD | 1200 | 20 @TC=140℃ | Gen-3 | 1.5 | 2.3 | 150 | 50 | -55~175 | TO247-2 | 工业级 |
|
SDS120J030H3
|
SBD | 1200 | 30 @Tc=137℃ | Gen-3 | 1.45 | 2.25 | 240 | 80 | -55~175 | TO247-2 | 工业级 |
