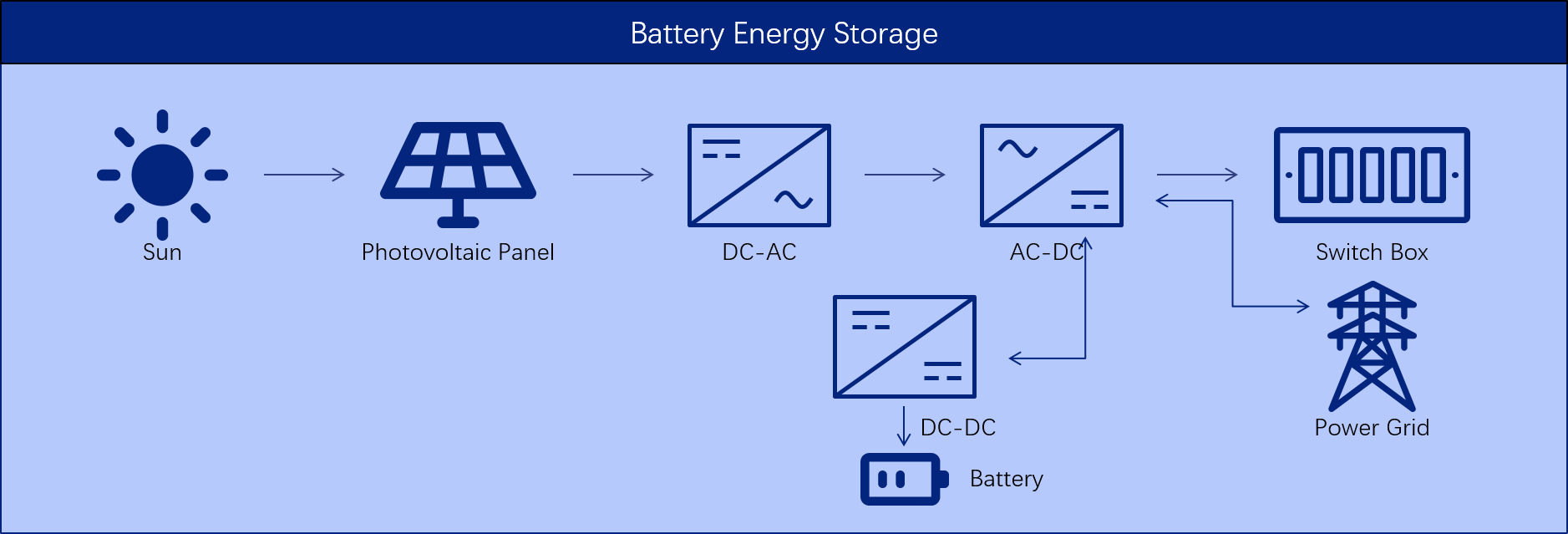

Today's energy storage systems are required to handle unusually high levels of current and maintain a high degree of reliability and stability. If necessary, they also need to release the stored energy quickly and accurately. This requires high-quality Wide Band Gap power semiconductors. Sanan IC, a member of JEDEC JD-70, participates in the formulation of industry standards for Wide Band Gap power semiconductors. Compared with traditional silicon devices, Sanan IC’s Silicon Carbide MOSFETs and diodes have higher performance and lower losses while allowing energy system engineers to design lighter systems, reducing overall system size and cost.
Part Number
|
Type |
Voltage (V) |
IF (A) |
Generation |
VF@Tj=25℃ (V) |
VF@Tj=175℃ (V) |
IFSM@Tc=25℃ (A) |
IR max@Tj=25℃ (uA) |
Tj(℃) |
Package |
Qualification |
---|---|---|---|---|---|---|---|---|---|---|---|
SDS065J002D2 |
SBD | 650 | 2 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 22 | 10 | -55~175 | TO252-2 | 工业级 |
SDS065J002C2 |
SBD | 650 | 2 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 22 | 10 | -55~175 | TO220-2 | 工业级 |
SDS065J004D2 |
SBD | 650 | 4 @Tc=156℃ | Gen-2 | 1.4 | 1.8 | 34 | 15 | -55~175 | TO252-2 | 工业级 |
SDS065J004C2 |
SBD | 650 | 4 @Tc=156℃ | Gen-2 | 1.4 | 1.8 | 34 | 15 | -55~175 | TO220-2 | 工业级 |
SDS065J006N2 |
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO220N-2 | 工业级 |
SDS065J006E2 |
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.8 | 54 | 20 | -55~175 | TO263-2 | 工业级 |
SDS065J006D2 |
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO252-2 | 工业级 |
SDS065J006C2 |
SBD | 650 | 6 @Tc=155℃ | Gen-2 | 1.4 | 1.75 | 54 | 20 | -55~175 | TO220-2 | 工业级 |
SDS065J008E2 |
SBD | 650 | 8 @Tc=151℃ | Gen-2 | 1.4 | 1.75 | 64 | 25 | -55~175 | TO263-2 | 工业级 |
SDS065J008D2 |
SBD | 650 | 8 @Tc=153℃ | Gen-2 | 1.5 | 1.9 | 65 | 25 | -55~175 | TO252-2 | 工业级 |
SDS065J008C2 |
SBD | 650 | 8 @Tc=153℃ | Gen-2 | 1.4 | 1.75 | 64 | 25 | -55~175 | TO220-2 | 工业级 |
SDS065J010N2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220N-2 | 工业级 |
SDS065J010F2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220F-2 | 工业级 |
SDS065J010E2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.8 | 80 | 40 | -55~175 | TO263-2 | 工业级 |
SDS065J010D2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO252-2 | 工业级 |
SDS065J010C2 |
SBD | 650 | 10 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 80 | 40 | -55~175 | TO220-2 | 工业级 |
SDS065J010G2 |
SBD | 650 | 5/10 @Tc=155℃ | Gen-2 | 1.35 | 1.6 | 51* | 20 | -55~175 | TO247-3 | 工业级 |
SDS065J012C2 |
SBD | 650 | 12 @Tc=151℃ | Gen-2 | 1.45 | 1.75 | 96 | 35 | -55~175 | TO220-2 | 工业级 |
SDS065J016H2 |
SBD | 650 | 16 @Tc=147℃ | Gen-2 | 1.4 | 1.7 | 136 | 40 | -55~175 | TO247-2 | 工业级 |
SDS065J016C2 |
SBD | 650 | 16 @Tc=147℃ | Gen-2 | 1.4 | 1.7 | 136 | 40 | -55~175 | TO220-2 | 工业级 |
SDS065J020G2 |
SBD | 650 | 10/20 @Tc=147℃ | Gen-2 | 1.45 | 1.75 | 80* | 40 | -55~175 | TO247-3 | 工业级 |
SDS065J020H2 |
SBD | 650 | 20 @Tc=148℃ | Gen-2 | 1.4 | 1.6 | 165 | 50 | -55~175 | TO247-2 | 工业级 |
SDS065J020F2 |
SBD | 650 | 13 @Tc=135℃ | Gen-2 | 1.4 | 1.6 | 180 | 50 | -55~175 | TO220F-2 | 工业级 |
SDS065J020C2 |
SBD | 650 | 20 @Tc=152℃ | Gen-2 | 1.4 | 1.6 | 180 | 50 | -55~175 | TO220-2 | 工业级 |
SDS065J030G2 |
SBD | 650 | 15/30 @Tc=147℃ | Gen-2 | 1.4 | 1.6 | 136* | 50 | -55~175 | TO247-3 | 工业级 |
SDS065J040G2 |
SBD | 650 | 20/40 @Tc=144℃ | Gen-2 | 1.4 | 1.6 | 180* | 50 | -55~175 | TO247-3 | 工业级 |
SDS065J060A |
SBD | 650 | 60 @Tc=123℃ | Gen-2 | 1.45 | 1.7 | 480 | 150 | -55~175 | SOT227 | 工业级 |
SDS065J080A |
SBD | 650 | 80 @Tc=122℃ | Gen-2 | 1.45 | 1.7 | 640 | 200 | -55~175 | SOT227 | 工业级 |
SDS065J100A |
SBD | 650 | 100 @Tc=120℃ | Gen-2 | 1.45 | 1.7 | 800 | 200 | -55~175 | SOT227 | 工业级 |
SDS120J002D2 |
SBD | 1200 | 2 @Tc=155℃ | Gen-2 | 1.4 | 2.05 | 27 | 10 | -55~175 | TO252-2 | 工业级 |
SDS120J002C2 |
SBD | 1200 | 2 @Tc=155℃ | Gen-2 | 1.4 | 2.05 | 27 | 10 | -55~175 | TO220-2 | 工业级 |
SDS120J005D2 |
SBD | 1200 | 5 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55 | 15 | -55~175 | TO252-2 | 工业级 |
SDS120J005C2 |
SBD | 1200 | 5 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55 | 15 | -55~175 | TO220-2 | 工业级 |
SDS120J010H2 |
SBD | 1200 | 10 @Tc=150℃ | Gen-2 | 1.4 | 2.1 | 95 | 30 | -55~175 | TO247-2 | 工业级 |
SDS120J010E2 |
SBD | 1200 | 10 @Tc=150℃ | Gen-2 | 1.5 | 2.2 | 95 | 30 | -55~175 | TO263-2 | 工业级 |
SDS120J010G2 |
SBD | 1200 | 5/10 @Tc=155℃ | Gen-2 | 1.4 | 2 | 55* | 15 | -55~175 | TO247-3 | 工业级 |
SDS120J010C2 |
SBD | 1200 | 10 @Tc=152℃ | Gen-2 | 1.45 | 2.2 | 95 | 30 | -55~175 | TO220-2 | 工业级 |
SDS120J015H2 |
SBD | 1200 | 15 @Tc=150℃ | Gen-2 | 1.45 | 2 | 150 | 40 | -55~175 | TO247-2 | 工业级 |
SDS120J015C2 |
SBD | 1200 | 15 @Tc=150℃ | Gen-2 | 1.45 | 2 | 150 | 40 | -55~175 | TO220-2 | 工业级 |
SDS120J020H2 |
SBD | 1200 | 20 @Tc=146℃ | Gen-2 | 1.45 | 2.2 | 180 | 50 | -55~175 | TO247-2 | 工业级 |
SDS120J020C2 |
SBD | 1200 | 20 @Tc=146℃ | Gen-2 | 1.45 | 2.2 | 205 | 50 | -55~175 | TO220-2 | 工业级 |
SDS120J020G2 |
SBD | 1200 | 10/20 @Tc=150℃ | Gen-2 | 1.45 | 2.2 | 95* | 30 | -55~175 | TO247-3 | 工业级 |
SDS120J030G2 |
SBD | 1200 | 15/30 @Tc=144℃ | Gen-2 | 1.45 | 2 | 150* | 40 | -55~175 | TO247-3 | 工业级 |
SDS120J040G2 |
SBD | 1200 | 20/40 @Tc=142℃ | Gen-2 | 1.45 | 2.2 | 180* | 50 | -55~175 | TO247-3 | 工业级 |
SDS120J040H2 |
SBD | 1200 | 40 @Tc=135℃ | Gen-2 | 1.5 | 2.25 | 320 | 100 | -55~175 | TO247-2 | 工业级 |
SDS120J060A |
SBD | 1200 | 60 @Tc=121℃ | Gen-2 | 1.6 | 2.2 | 480 | 120 | -55~175 | SOT227 | 工业级 |
SDS120J080A |
SBD | 1200 | 80 @Tc=125℃ | Gen-2 | 1.55 | 2.1 | 640 | 160 | -55~175 | SOT227 | 工业级 |
SDS120J100A |
SBD | 1200 | 100 @Tc=138℃ | Gen-2 | 1.55 | 2.1 | 800 | 200 | -55~175 | SOT227 | 工业级 |
SDS065J004C3 |
SBD | 650 | 4 @Tc=150℃ | Gen-3 | 1.35 | 1.55 | 34 | 12 | -55~175 | TO220-2 | 工业级 |
SDS065J006C3 |
SBD | 650 | 6 @Tc=150℃ | Gen-3 | 1.3 | 1.55 | 54 | 18 | -55~175 | TO220-2 | 工业级 |
SDS065J008S3 |
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 68 | 20 | -55~175 | DFN8*8 | 工业级 |
SDS065J008N3 |
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 68 | 20 | -55~175 | TO220N-2 | 工业级 |
SDS065J008C3 |
SBD | 650 | 8 @Tc=150℃ | Gen-3 | 1.3 | 1.6 | 65 | 20 | -55~175 | TO220-2 | 工业级 |
SDS065J010S3 |
SBD | 650 | 10 @Tc=155℃ | Gen-3 | 1.3 | 1.6 | 80 | 20 | -55~175 | DFN8*8 | 工业级 |
SDS065J010C3 |
SBD | 650 | 10 @Tc=155℃ | Gen-3 | 1.25 | 1.45 | 80 | 20 | -55~175 | TO220-2 | 工业级 |
SDS065J012C3 |
SBD | 650 | 12 @Tc=150℃ | Gen-3 | 1.3 | 1.5 | 108 | 36 | -55~175 | TO220-2 | 工业级 |
SDS065J016C3 |
SBD | 650 | 16 @Tc=150℃ | Gen-3 | 1.3 | 1.55 | 135 | 48 | -55~175 | TO220-2 | 工业级 |
SDS065J020C3 |
SBD | 650 | 20 @TC=140℃ | Gen-3 | 1.35 | 1.55 | 140 | 60 | -55~175 | TO220-2 | 工业级 |
SDS120J020H3 |
SBD | 1200 | 20 @TC=140℃ | Gen-3 | 1.5 | 2.3 | 150 | 50 | -55~175 | TO247-2 | 工业级 |
SDS120J030H3 |
SBD | 1200 | 30 @Tc=137℃ | Gen-3 | 1.45 | 2.25 | 240 | 80 | -55~175 | TO247-2 | 工业级 |
